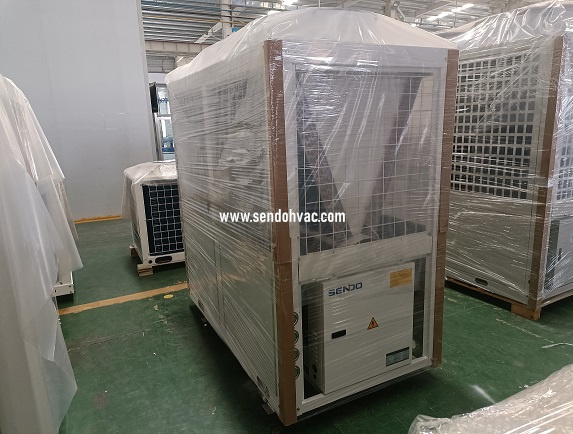

Modular Air Cooled Water Chiller
Conventional Modular Type Air Cooled Chiller
Single unit’s capacity from 66kW to 135kW
Conventional Modular Type Air Cooled Water Chiller
Modular Air to Water Chillers adopt V shape air side heat exchanger, shell & tube type water side heat exchanger, equip with scroll compressors. The master module can work independently or together with up to 16 slave modules, capacity from 66kW to 2160kW.
Features
Casing
The casing is made of zinc coated galvanised steel sheets. It is further treated with an electrostatic powder coat then over baked to provide a weather resistant finish to suit the harsh climate.
Scroll Compressor
High efficiency scroll type compressor is hermetically sealed, quiet running and supported on rubber mounts to minimise vibration. All compressors are provided with an internal overload protection, and incorporate crankcase heater for smooth start-up under any conditions. Famous brand compressor: Copeland, Panasonic and Danfoss. More reliable.
Condenser
The condenser coils are manufactured from seamless copper tubes mechanically bonded to hydrophilic aluminium fins to ensure optimum heat transfer. To improve corrosion resistance, a hydrophilic Gold Fin is provided as optional feature.
Condenser Fan
External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille. Saw-shaped impellers provide large air volume, high durability and high air supply efficiency with low noise.
Evaporator
Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
Multiple protection
Electric box consists of breakers and contactors for compressors & condenser fan motors, phase sequence relay and other necessary protection devices for the main components.
Back-up functions, In a combination system, if one module failed, other modules can be back-up instead of the failed one for continuing operation. In one combination module, all slave units operate as alternative in cycle duty to keep equal running time, realize higher stability, better reliability and longer lifespan.
Built-in hydronic module optional
The module Air Cooled Scroll Chiller could be fully integrated with Expansion tank, water circulating pump and water flow switch, which could save more space and convenient to use.
